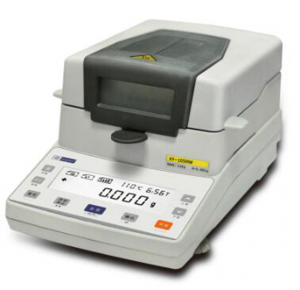

Moisture Analyzer
ST-MW Series Moisture Analyzer Halogen moisture anayzer use heating method to test the moisture content of the test sample, it can test moisture content fast. And the result similar as the oven test standard, so it wildely used in different industry. Such as agriculture,medicine,plastic etc
| PARAMETERS | ||||
| MODEL |
ST105MW |
ST102MW |
ST100MW |
ST100MW-T |
| SPECIFICATION |
110g/5mg |
110g/2mg |
110g/1mg |
110g/1mg |
| SENSOR |
LOADCELL |
|||
| PANSIZE |
Φ90mm |
|||
| READABILITY |
5mg |
2mg |
1mg |
1mg |
| OPERATING TEMP.RANGE |
5°C—35°C |
|||
| HEAT SOURCE |
HALOGEN LAMP-1 |
HALOGEN LAMP-2 |
||
| TEMP SENSOR |
PT-100 |
PT-100 |
||
| TEMP RANGE |
40°C—199°C |
40°C—199°C |
||
| TEMP STEP |
1°C |
1°C |
||
| MOISTURE RANGE |
0.00%—100.00% |
|||
| MOISTURE READABILITY |
0.10% |
0.04% |
0.01% |
0.01% |
| DRY RANGE |
100.00%—0.00% |
100.00%—0.00% |
||
| DRY READABILITY |
0.10% |
0.04% |
0.01% |
0.01% |
| ATRO |
100%….999% |
100%….999% |
||
| ATRO |
0%….999% |
0%….999% |
||
| NUMBER OF STORAGE |
15 |
20 |
||
| MOQ |
10pcs |
5pcs |
||
Use halogen moisture analyzer should attention:
1,halogen moisture analyzer is used to measure the moisture content in the sample,
used for any other purpose are likely to cause harm and personal damage the instrument.
2, Please read the instructions carefully before you use it, do not use it under the environment
condition which not meet the requirements.
3, halogen rapid moisture analyzer only suit for professional operate.
4, halogen rapid moisture analyzer for power for the three plug with earthing socket,
banned disconnect apparatus grounding or use without a good grounding power supply.
5, Instrument around should ensure that there is enough space, so as to avoid heat accumulation and heat.
6, Please do not put flammable and explosive goods around the instrument.
7, After the test, the heating unit and the container is still very hot, so please do not touch it.
8, Toxic substances testing should be under ventilation environment
