Aerial fog system
Main Functions：
1. High efficiency Humidification: water consumption 8.4L per hour, 100% atomization, and one single unit can make the humidity up to 50% within 2min.
2. Cooling the indoor temperature: 100% evaporate, can reduce the indoor temp very quickly.
3. High-efficiency dust suppression: during spray, it can produce a large number of negative oxygen ions which will neutralize positive charges so as to absorb and gather the dust particles and then drop down.
4. Disinfection and medication prevention: can be equipped with disinfect mixer to achieve the disinfection function.
5. De-electrostatic: during spraying, it can produce a large number of negative oxygen ions which will neutralize positive charges so as to eliminate static electricity. With the increase of humidity, static electricity will be largely reduced.
Main Feature:
1. Controllable pressure setting and coverage area.
2. Air powered, two stage atomization system.
3. Twin control design, effectively prevent nozzle clogging.
4. High quality spray particles, avoid wetting the ground.
Technical Parameter:
| Nozzle model | Spray Volume
(L/H) |
Air Consumption
(cbm/min) |
Spray Distance
(m) |
Droplet Size (μm) | Covering Area
(㎡) |
Water pressure
(bar) |
Air pressure
(bar) |
Applicable Functions |
| A | 8.4 | 0.264 | 5.6 | 5-10 | 100 | 3bar | 3bar | humidification ,dust control |
| B | 25 | 0.35 | 5 | 80-120 | 100 | 3bar | 3bar | disinfection,humidification
and dust control |
|
Main Function |
Application |
|
Humidification: |

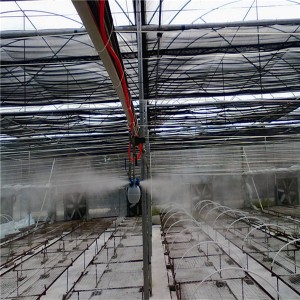

Textile working Room, Mushroom nursery, Poultry incubation, Food storage |
|
Moisture control: |
Textile, Paper, Plywood. Static-electricity control: Printing line, Plastic film, plastic molding, electronics, Paper making. |
|
Static electricity control |
Printing, Textile, Painting line, Plastic film, plastic molding, assembly line of electronics, Paper. |
|
Dust suppression: |
Painting line,Minning, Ceramic fabrication |
